Assembly guides & frame drawings for Atlas Front Sun Canopy
Assembly guides, videos, frame drawings, guides and other instructions for use for Isabellas Atlas Front Sun Canopy.
Instructions
(pdf download)
| Filename | Filesize | Date |
 ATLAS_V02_2026_R4831.pdf | 1818 KB | 29/06/2026 14:35:13 |
| R4831_ATLAS.pdf | 2343 KB | 03/06/2020 08:01:22 |
| R4832_ATLAS_SIDE.pdf | 201 KB | 03/06/2020 08:01:23 |
Looking for a specific pole?
Click the link below to find a frame drawing for your awning. You can click on exactly the pole you need here. When you’ve found the pole, you can order it directly on our website and collect it from your Isabella dealer.
Frame Drawnings
(pdf download)
| Filename | Filesize | Date |

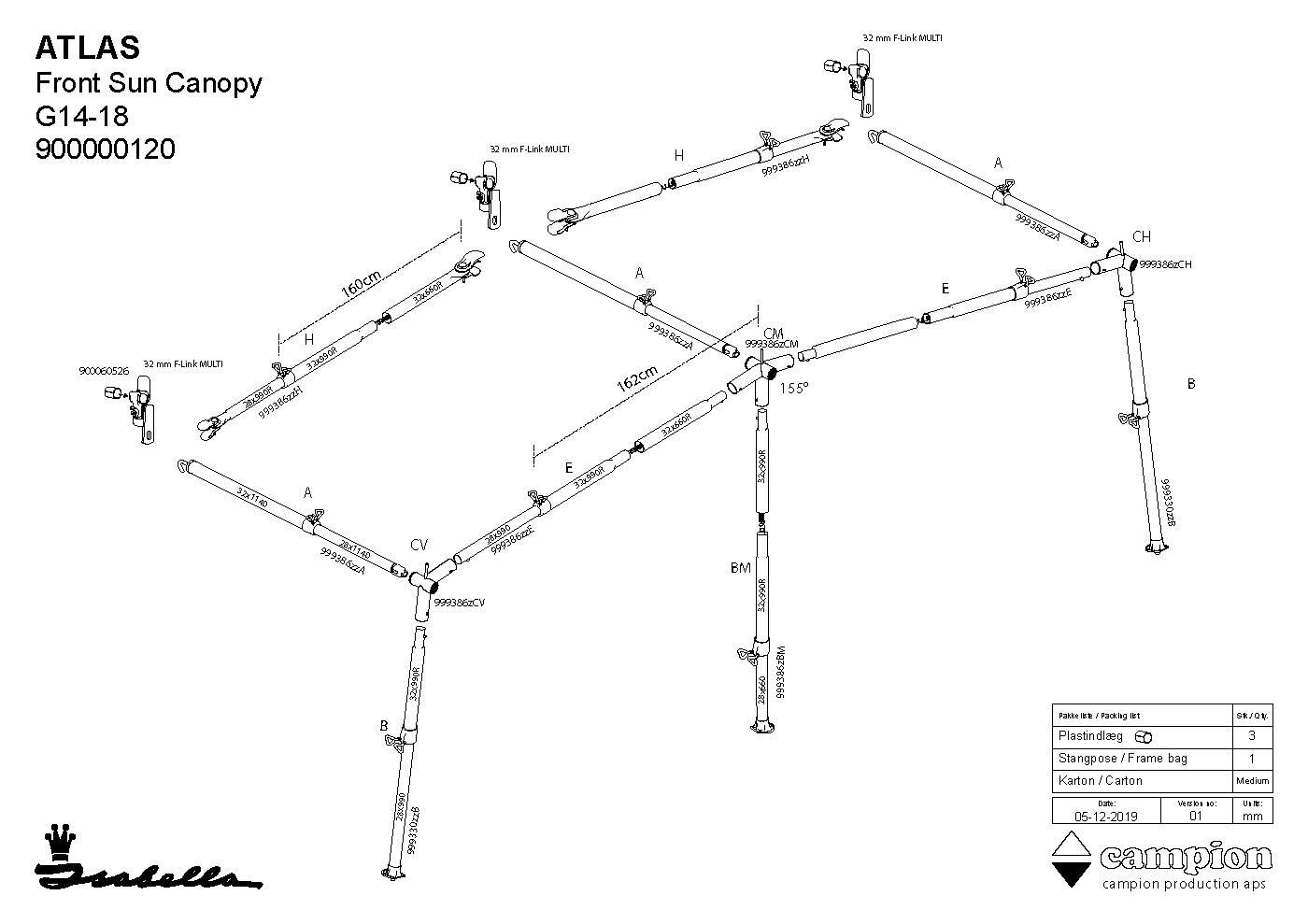

| Atlas G14-18.pdf | 120 KB | 29/06/2026 14:21:27 |

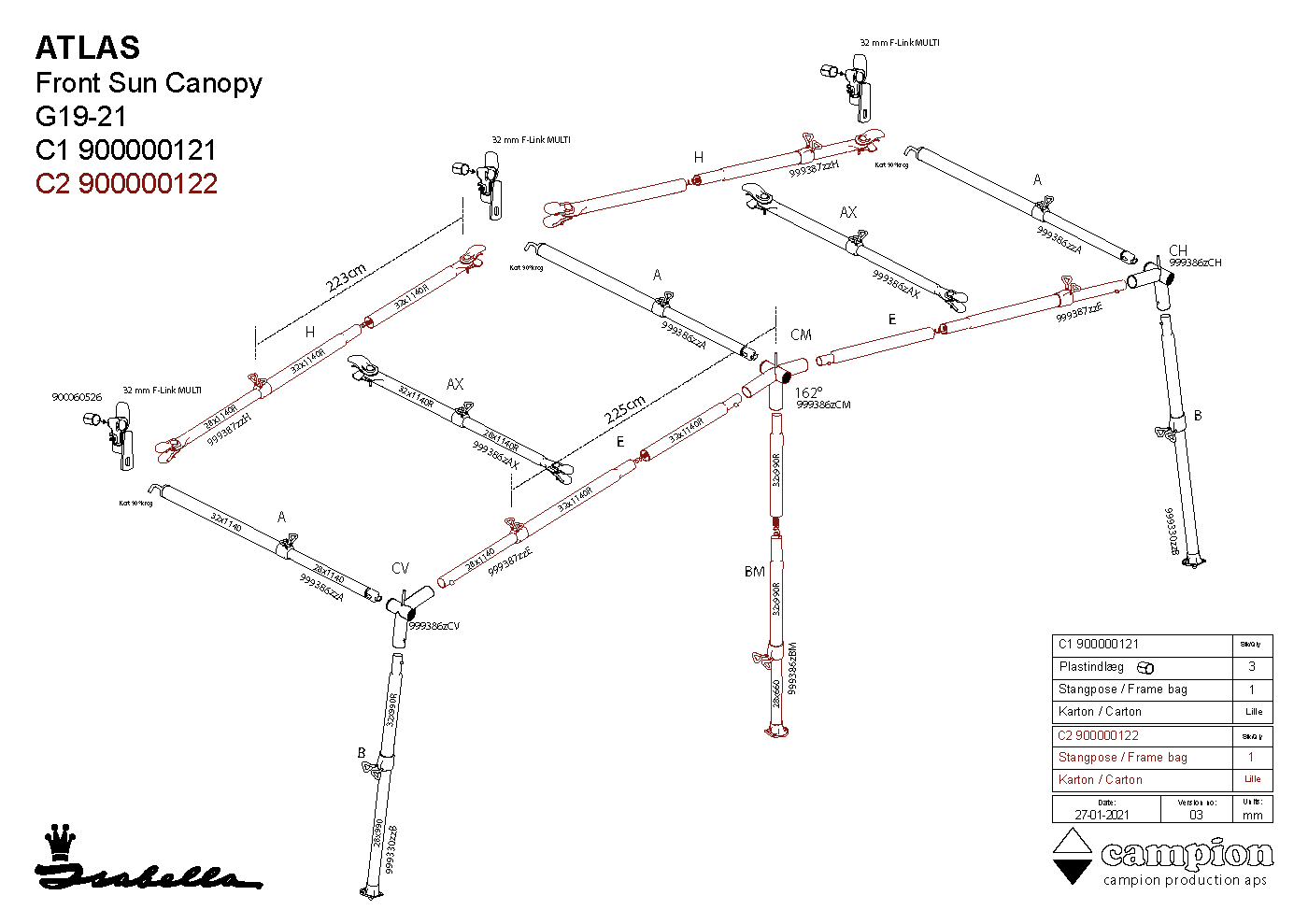

| Atlas G19-21.pdf | 101 KB | 29/06/2026 14:19:48 |

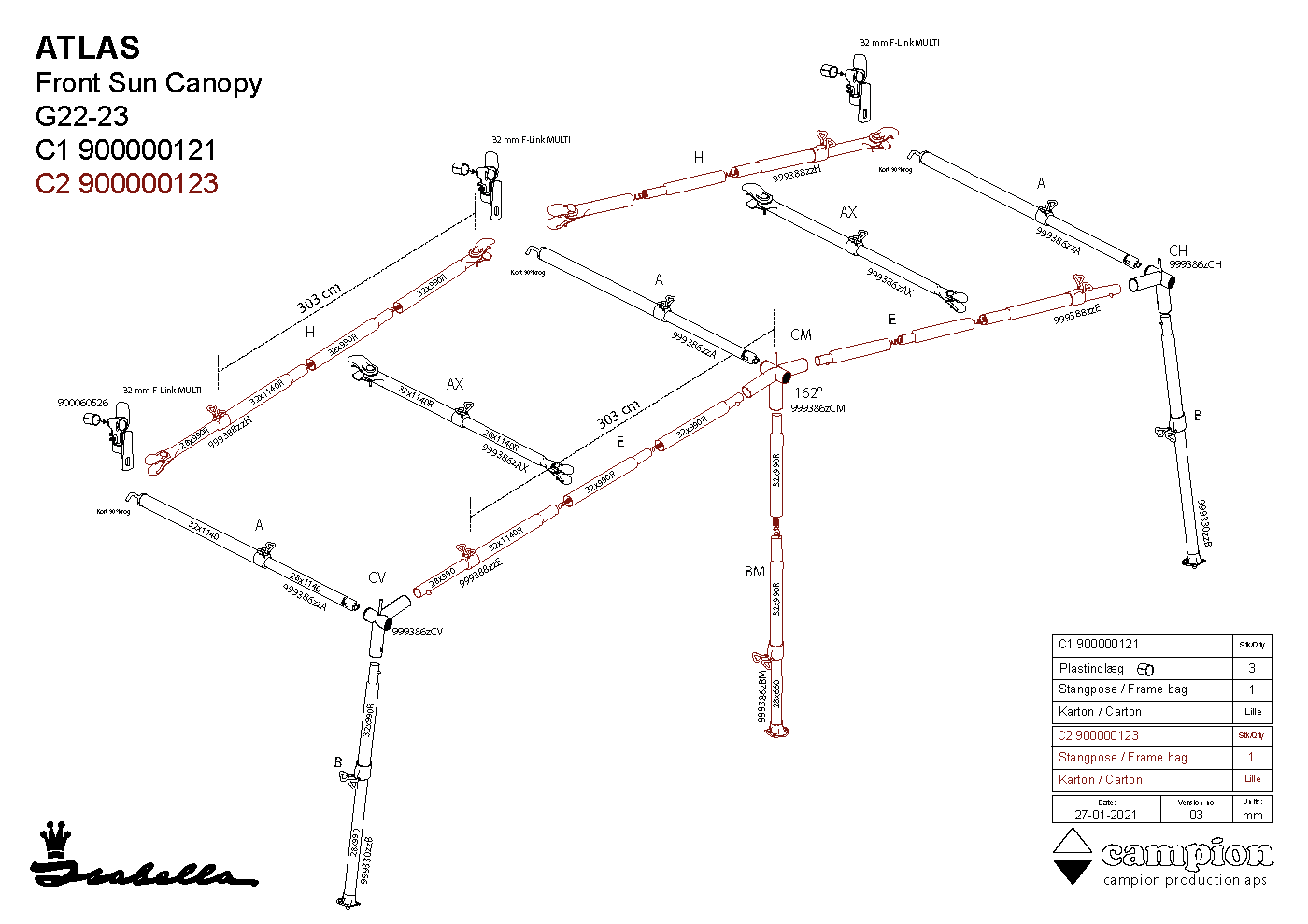

| Atlas G22-23.pdf | 95 KB | 29/06/2026 14:20:13 |
Clickable frame drawings
Atlas
Atlas-G14-18 add
Atlas-G19-21 add
Atlas-G22-23 add
